HPTW-25-5.5-20-26-12-210-ZP-XL2-195 Hydraulic Winch Equipped with DANFOSS XL2-195 motor(84010525:2T(20kN)
Basic technical parameters:
1. 1st Layer Line Pull: 20kN
2. 1st Layer Line Speed: 30 m/min
3. Total displacement: ml/r
4. Motor Working Pressure Difference: 15.3MPa
5. Rope Diameter / Capacity: 12 mm /26 m (across 3 layers)
6. System Theoretical Rated Flow: 50.2L/min (ɳv=0.92)
7. Hydraulic Motor: DANFOSS XL2-195 motor
8. Brake Release Pressure: 20 - 25 Bar
Application:
● Construction machinery: Rotary drilling rigs, crawler cranes, aerial work platforms, skid steer loaders, horizontal directional drills, excavators and concrete pump trucks, for auxiliary hoisting, component lifting and pipe pulling.
● Mining & tunneling: Drill jumbos, roadheaders and underground mining facilities for material handling and equipment positioning.
● Marine & fishery: Fishing boat net hauling, small deck cranes, anchoring systems and port handling equipment.
● Municipal & special vehicles: Wreckers, truck-mounted cranes and road maintenance trucks for on-site lifting and recovery work.
● Agricultural & forestry machinery, as well as general industrial lifting and material handling in workshops and logistics sites.
Key Advantages
Stable heavy-load performance It delivers 20 kN rated pulling force and 2900 N·m maximum static output torque, maintaining consistent power output throughout multi-layer rope winding for sustained heavy-duty operations.
High safety & smooth control The integrated counterbalance valve and dual braking system provide reliable load-holding capacity even in case of pressure loss, effectively preventing load slipping and enabling stepless, stable speed regulation.
Premium, reliable drive
Matched with an original Danfoss hydraulic motor, it features stable power delivery, high reliability and excellent compatibility with mainstream hydraulic systems.
Robust & maintenance-friendly design
The all-in-one compact structure is easy to install on various equipment; the grooved drum ensures orderly rope arrangement and extends wire rope service life. An oil dipstick and drain plug simplify routine maintenance.
Wide environmental adaptability
It operates reliably within an ambient temperature range of -20℃ to 70℃, and its fully enclosed housing resists dust, vibration and harsh outdoor working conditions.

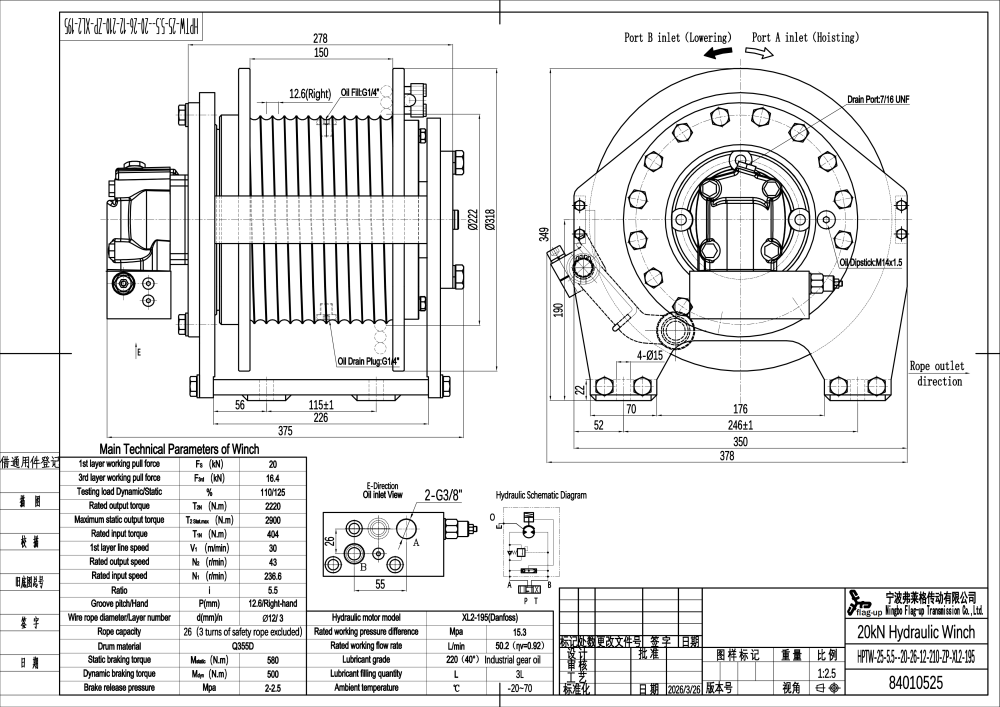

DRAWING:
