General Overview
Product Name: 150 kN Hydraulic Marine Winch / Fishing Winch

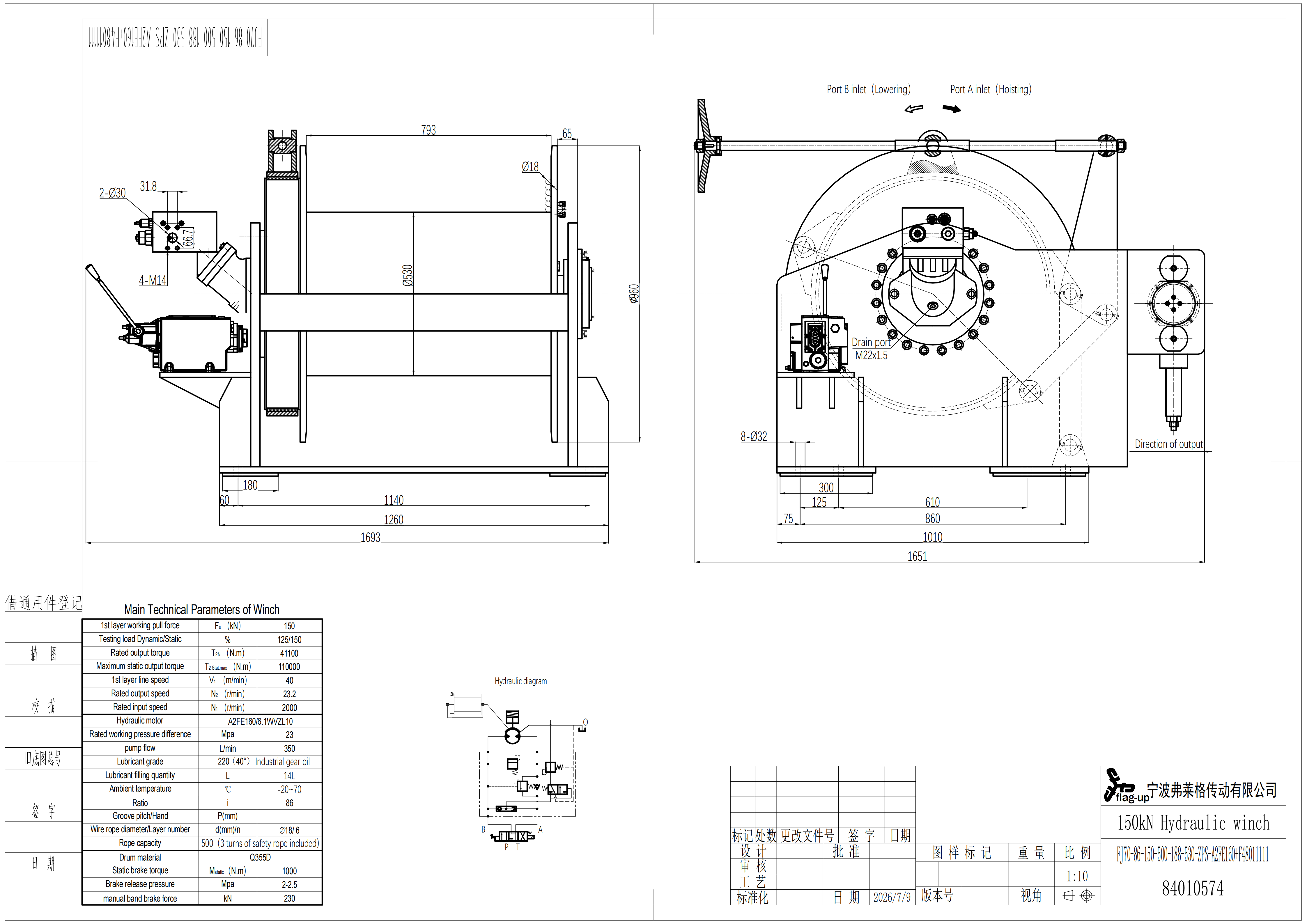

Drawing / Part Number: 84010574
Applications: Trawling, Purse Seining, Anchor Handling, and Heavy Marine Deck Operations
Main Technical Parameters Table
|
Technical Parameter
|
Metric Value
|
Imperial / US Unit Equivalent
|
Notes & Remarks
|
|
1st Layer Working Pull Force
|
150 kN
|
~15.3 Tons-force / 33,720 lbf
|
Nominal load rating
|
|
Testing Load (Dynamic / Static)
|
125% / 150%
|
125% / 150%
|
Factory load proofed
|
|
1st Layer Line Speed
|
40 m/min
|
~131.2 ft/min
|
At rated hydraulic input
|
|
Rated Output Torque
|
41,100 N·m
|
~30,313 lb-ft
|
Planetary gearbox rating
|
|
Maximum Static Output Torque
|
110,000 N·m
|
~81,130 lb-ft
|
Maximum holding rating
|
|
Hydraulic Motor Model
|
A2FE160/6.1WVZL10
|
Bent-axis piston design
|
High-efficiency drive
|
|
Rated Input Speed
|
2000 r/min
|
2000 RPM
|
Motor input speed
|
|
Rated Output Speed
|
23.2 r/min
|
23.2 RPM
|
Drum rotation speed
|
|
Gearbox Reduction Ratio
|
86 : 1
|
86 : 1
|
High-torque planetary design
|
|
Rated Working Pressure Diff.
|
23 MPa
|
~230 bar / 3,335 PSI
|
System operating pressure
|
|
Required Pump Flow Rate
|
350 L/min
|
~92.5 GPM
|
Optimal hydraulic flow
|
|
Wire Rope Diameter
|
18 mm
|
~0.71 in
|
High-tensile steel wire
|
|
Rope Layer Number
|
6 Layers
|
6 Layers
|
Total winding capacity
|
|
Rope Storage Capacity
|
500 m
|
~1,640 ft
|
Includes 3 turns safety reserve
|
|
Drum Flange Outer Diameter
|
960mm
|
~37.8 in
|
Steel flange
|
|
Drum Core Diameter
|
530mm
|
~20.87 in
|
Q355D structural steel
|
|
Drum Length
|
793 mm
|
~31.22 in
|
Winding length
|
|
Drum Material
|
Q355D
|
Low-alloy high-strength steel
|
High fatigue & impact resistance
|
|
Static Brake Torque
|
1,000 N·m
|
~737 lb-ft
|
Multi-disc hydraulic brake
|
|
Brake Release Pressure
|
2.2 – 2.5 MPa
|
~22 – 25 bar / 319 – 362 PSI
|
Automatic hydraulic release
|
|
Manual Band Brake Force
|
230 kN
|
~23.4 Tons-force / 51,700 lbf
|
Heavy-duty manual hold
|
|
Lubricant Grade & Quantity
|
220 (40℃)industrial gear oil
|
|
Industrial gear oil
|
|
Operating Ambient Temp.
|
-20 ℃to+70℃
|
|
Severe marine environment design
|
Overall Physical Dimensions (For Deck Footprint Planning)
Overall Length : 1693 mm (~66.65 in)
Overall Width : 1651 mm (~65.0 in)
Overall Height : 960 mm (~37.8 in)
Base Mounting Hole Pattern:
Width Base: 1140 mm / 1260 mm
Length Base: 610 mm / 860 mm / 1010 mm
Key Features & Highlights for Website CTA (Call-to-Action)
1. Integrated Level Wind (Spooling Device): Automatic mechanical rope guider guarantees smooth and even wire winding across all 6 layers, preventing cable overlapping and extending rope life.
2. Dual Safety System: Equipped with both an automatic hydraulic multi-disc fail-safe brake and a high-capacity 230 kN manual band brake for double safety during offshore operation.
Marine-Grade Durability: Q355D steel drum combined with heavy-duty anti-corrosion coating, tailored for harsh ambient temperatures from -20 ℃to+70℃.
3. Heavy-Duty Planetary Drive: Driven by a reliable bent-axis A2FE160 hydraulic motor and an $86:1$ gear reducer delivering 41,100 N·m rated output torque.
4. Danfoss PVG256 Proportional Valve:PVG is a hydraulic, load-sensing proportional valve,designed for optimal machine performance and
maximum design flexibility.PVG 256 controls work port flow up to
500 l/min and up to 420 bar work port pressure.The PVG valve design is based on a modular conceptthat enables machine designers to specify a valvesolution suitable for multiple market segments across
multiple applications.The load independent proportional control valve andhigh performance actuator technology combinedwith a low pressure drop design improves themachine performance and efficiency-Increasingproductivity and reducing energy consumption.
