Axis Electric Joystick with Proportional Push Rocker Switch（CAN CONTROL：Model: 81150081）
Basic technical parameters:
● Power supply: 10–32 VDC
● operating current < 100mA
● inrush current < 10A
● Control system: CAN bus with SAE J1939 (EJM3) protocol; source address 160, baud rate 250kbps, transmission cycle 20ms
● Mechanical angle: X/Y axis ±18°, Z axis ±15°; mechanical neutral position accuracy ±0.5°
● Operating temperature range: -40℃ to 75℃
● Mounting: 4×φ4.6 fixing holes; integrated Z-axis rocker switch
Application:
1. Electro control for construction machinery: excavators, rotary drilling rigs, aerial work platforms, skid steer loaders, crawler cranes and horizontal directional drills
2. Control systems for agricultural machinery, special vehicles and industrial hydraulic equipment
3. CAN-based distributed control systems on mobile working equipment
Key Advantages
● Built-in CAN bus control – Adopts SAE J1939 standard protocol for digital signal transmission, with strong anti-interference capability, simplified wiring and easy networking with multiple on-board devices.
● High-precision operation – ±0.5° neutral position accuracy ensures smooth, steady proportional control and fine motion regulation.
● Superior environmental adaptability – Wide voltage input and -40~75℃ operating range enable reliable performance in harsh outdoor construction and industrial environments.
● Multi-function integration – Dual-axis proportional control plus Z-axis rocker switch supports multi-action integrated operation in a compact unit.
● High reliability – Robust enclosed design with standard mounting dimensions, suitable for long-term heavy-duty mobile equipment use.

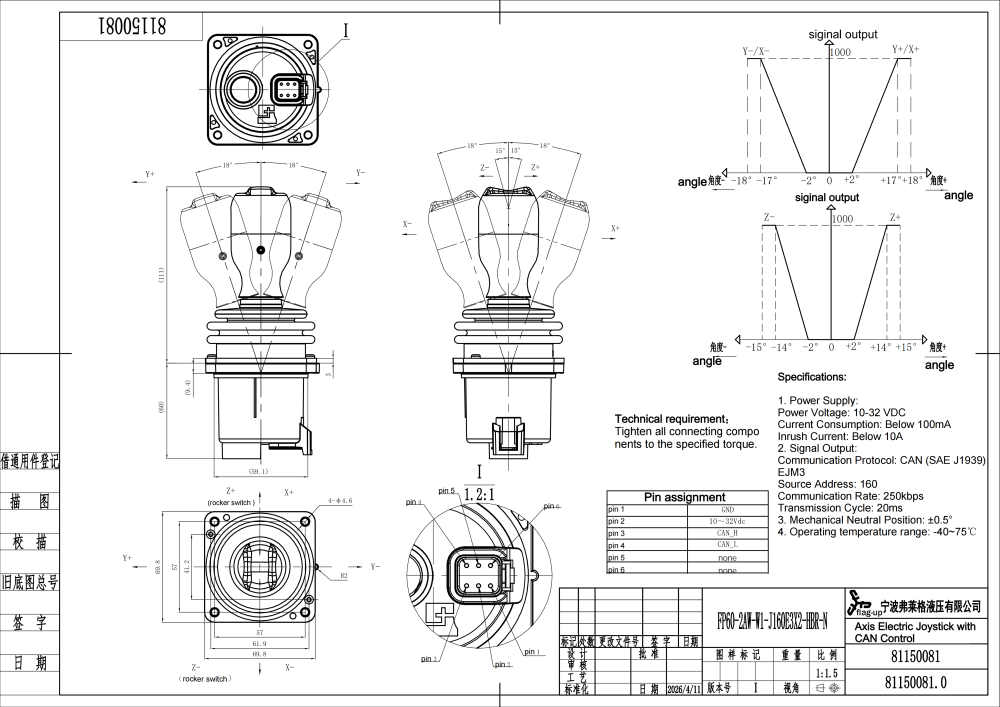

DRAWING:
WHY CHOOSE US
EXPERIENCED
QUALITY
R&D
We have more than 15 years of experience in this item.
Introduce well-known brand processing equipment and provide QC reports.
Our R&D team consists of 10-20 people, most of whom have about 10 years of work experience.
OUR CERTIFICATES
Quality Control Equipment
To ensure the quality of factory products,we introduce advanced cleaning and component testing instruments, 100% of the assembled products pass factory testing and the test data of each product is saved on a computer server.
R&D team
Our R&D team consists of 10-20 people, most of whom have about 10 years of work experience.
Our R&D center has a sound R&D process，including customer survey, competitor research, and market development management system.
We have mature R&D equipment including design calculations, host system simulation, hydraulic system simulation, on-site debugging, product testing center, and structural finite element analysis.
OUR PARTNER
Over the past decade,as a trusted supplier, Ningbo Flag Hydraulic Co., Ltd. provides supporting equipment for large and powerful domestic enterprises such as Sunward Intelligent, XCMG, Sany Heavy Industry, and Zoomlion.
-
81150081-CAN control button
