Questions For heavy-duty construction hydraulic winches, true performance comes down to the internal gear reduction system, not just raw hydraulic power. Planetary gearboxes have become the industry standard, outperforming traditional worm and parallel-shaft drives in load capacity, compactness and reliability. Below are the most frequent questions we receive from customers at exhibitions:
Q1: What is a planetary gearbox, and what does it do in a hydraulic winch?

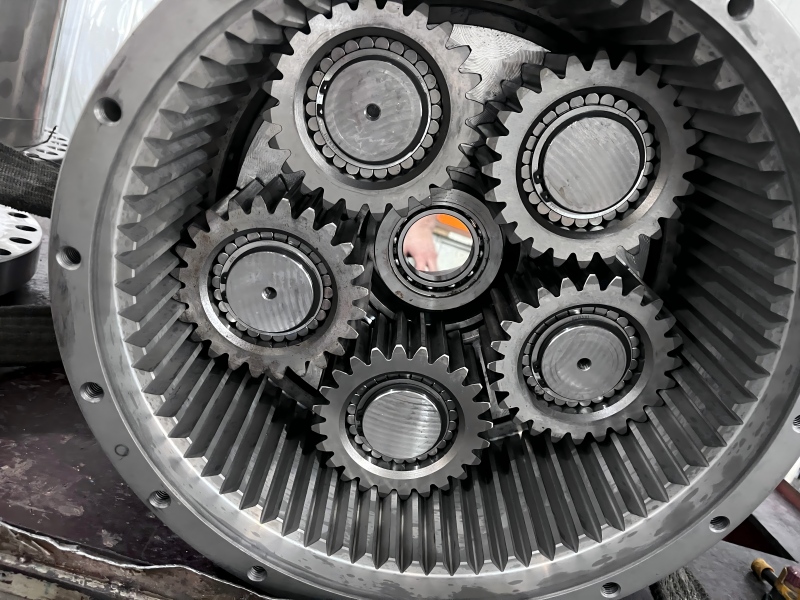

Ningbo Flag-up planetary gearbox consists of a central sun gear, 4–5 planet gears and a fixed outer ring gear. Its core function is speed reduction and torque multiplication: it converts the high-speed, low-torque output of a hydraulic motor into slow, high-torque rotation to safely drive the winch drum for heavy lifting.
Q2: Why are planetary gearboxes preferred over worm or parallel-shaft drives?
Three irreplaceable advantages:
1. Higher torque density: Load is shared across 4–5 gear pairs, delivering far more torque in a much smaller body.
2. Coaxial compact design: The full gear set fits inside the winch drum, ideal for tight mounting spaces on cranes, drilling rigs and marine decks.
3. Better shock resistance & efficiency: Multi-tooth engagement absorbs impact loads better, with up to 97% efficiency per stage for less heat and wear.
Q3: What practical benefits do planetary gear winches bring to jobsite operations?
Four key operational advantages:
1. Less downtime: Load-sharing design and heavy-duty bearings reduce failures and extend service intervals
2. Smoother, safer control: Low backlash ensures stable drum speed and precise load positioning
3. Lower total cost: High efficiency cuts fuel consumption; enclosed structure reduces on-site maintenance
4. Easier installation: Compact drum-integrated design simplifies OEM mounting and retrofitting
Q4: How do you ensure durability for heavy construction and mining applications?
Strict quality control from raw material to final assembly:
1. Material & heat treatment: 20 CrMnTi alloy steel with carburizing & quenching (58–62 HRC surface hardness) for wear resistance and impact toughness
2. Precision & bearings: ISO 6 grade ground gears for smooth meshing; full-complement roller bearings on each planet gear for heavy combined loads 3. Lubrication & sealing: Optimized oil-bath lubrication works at tilted operating angles; fully enclosed structure blocks dust and water ingress All winches pass full-load pressure testing before delivery.
Q5: Can these winches handle frequent start-stops and sudden shock loads?
Yes — this is a core strength of planetary design. Impact torque from load take-up, sway or emergency stops is distributed across multiple gear teeth instead of one pair, greatly reducing breakage risk. Our winches are purpose-built for harsh cyclic duty on truck cranes, crawler cranes and underground mining equipment.
Q6: Do you offer custom gear ratios and mounting options for OEM projects?
Yes. Our modular planetary design supports flexible customization: Single/double/triple-stage configurations, reduction ratios from 3:1 to over 100:1
Custom drum length, flange dimensions and mounting hole layouts
Full system matching: counterbalance valves, pressure relief valves, negative brakes and hydraulic pilot handles for plug-and-play OEM packages
Our standard range covers 10–300 kN rated line pull, all CE certified and ISO 4406 compliant.
Q7: What routine maintenance does a planetary gear winch require?
Planetary design delivers very low maintenance needs:
Daily/weekly: Check oil level and inspect for external leaks
Scheduled: Change gear oil every 1000–2000 working hours and inspect seal condition
No complex internal adjustments are needed under normal use. Compared to worm gear winches, they significantly cut maintenance time and labor costs over their service life.
Have more questions, or need a tailored solution for your equipment project?
Browse our full hydraulic winch catalog for detailed specifications, or contact our technical sales team today for a free application review and quotation.
