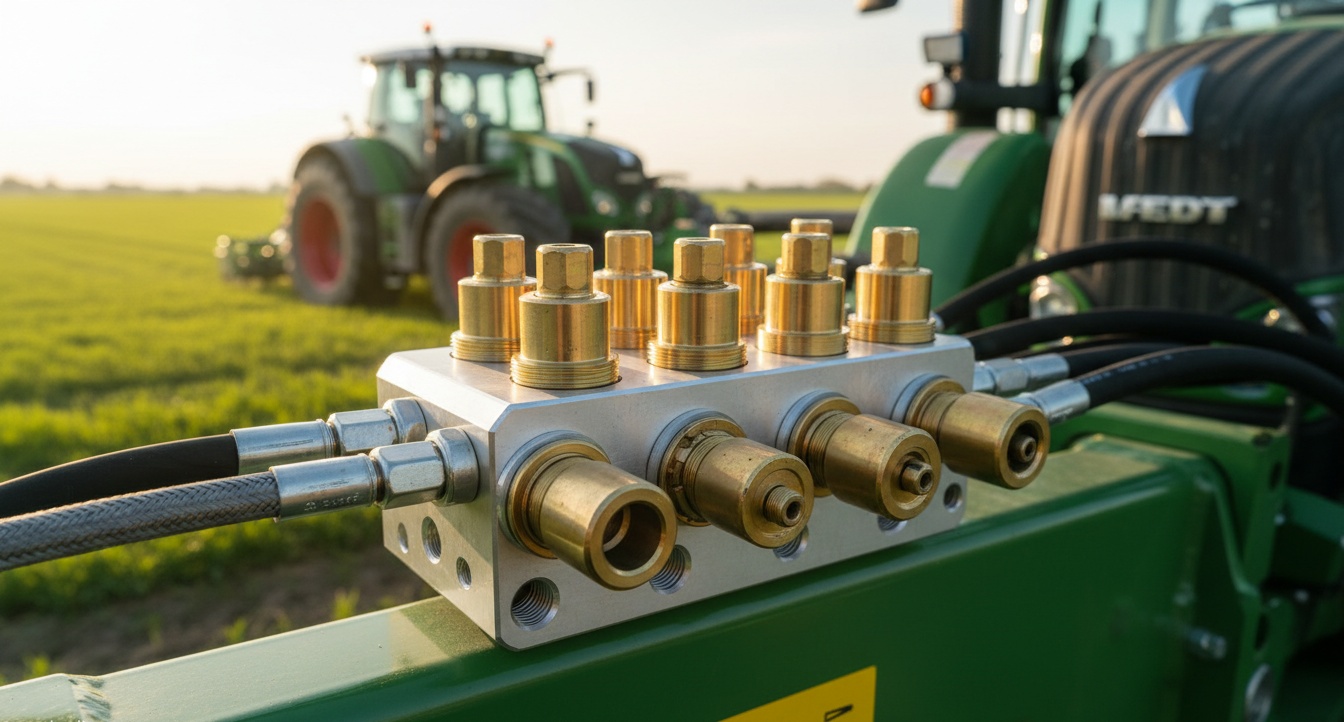

European Agricultural OEMs’ Cartridge Valve Procurement: Sun-Compatible Porting and Pressure Ratings

TL;DR — Key Takeaways

• Sun-compatible porting (SAE 8/10/12 patterns) ensures physical interchangeability with Sun-rated manifolds — mismatch causes 8-15% system efficiency loss from internal bypass leakage.
• Agricultural tractors operate at 180-210 bar; combines and sprayers reach 250-350 bar. Pressure rating must exceed relief valve setting by minimum 15% to prevent fatigue failure.
• Three most costly cross-reference errors: wrong pressure rating, wrong flow configuration, and nitrile seals in bio-based fluid systems (causes failure at 500-800 hours vs. 3,000+ hours normal).
• Field contamination failures cost European agricultural OEMs 12-18% of total hydraulic maintenance budget annually; root cause is soil ingress, bio-oil degradation, and harvest dust penetration.
• Verify pilot passage cross-drilling and anti-rotation flat position during incoming inspection — 30% of cross-reference mismatches are detectable before installation with simple visual inspection.

In 2025, we supplied replacement cartridge valves to seven European agricultural equipment manufacturers who had sourced from a competitor whose valves were failing in the field at 400-600 hours instead of the expected 3,000+ hour service life. Every single one of those seven cases traced back to a procurement specification error — not a manufacturing defect. The valves were physically the right size and the right shape, but they were the wrong pressure rating, the wrong flow configuration, or the wrong seal compound for the application. Because they looked right, no one suspected them until the equipment was already in the field and failing.

This guide covers the procurement specifications that determine whether your agricultural hydraulic cartridge valves achieve their design service life. It is written for hydraulic system designers, procurement engineers, and equipment managers at agricultural OEMs who need to specify, source, or cross-reference cartridge valves for tractors, combines, sprayers, and material handling equipment. Every technical recommendation is backed by field failure data from actual agricultural equipment operating conditions.

Understanding the Agricultural Hydraulic System Profile

European agricultural equipment hydraulic systems operate under conditions that are significantly more demanding than industrial hydraulic applications. The combination of high cyclic loading (hundreds of hitch raise-lower cycles per day during harvest), contaminated fluid environments (field dust, crop residue, moisture), and extended equipment idling (engines left running while loading grain carts) creates a hydraulic operating profile that accelerates wear mechanisms that are less critical in industrial applications.

The dominant hydraulic system architectures in European agricultural equipment are:

• Closed-center load-sensing (CCLS) — used in modern tractors above 100 HP (John Deere 6R, Case IH Puma, New Holland T7) where the pump automatically adjusts flow to match implement demand, minimizing heat generation and fuel consumption. System pressures typically 180-210 bar.
• Open-center fixed-displacement — used in older and smaller tractors (under 80 HP) and many implements where simplicity and cost take priority over efficiency. System pressures 150-180 bar. These systems are more tolerant of contamination but more sensitive to pressure spikes.
• Hybrid closed-center — used in combine harvesters where multiple functions (header, augers, beaters, grain tank) operate simultaneously. Requires flow dividers and priority valves that create back-pressure complexity. System pressures reach 250 bar during simultaneous multi-function operation.
• High-pressure sprayer systems — separate hydraulic circuits on self-propelled sprayers (Hagie, Amazone, Lechler) operating at 250-350 bar for precision nozzle control. These systems require cartridge valves with pressure ratings matching or exceeding the high-pressure circuit relief valve setting.

Sun-Compatible Porting: The Interchangeability Requirement

Sun Hydraulics (now part of the Helios Instruments group) established the SAE porting pattern standard that has become the de facto interface standard for hydraulic cartridge valves across the global agricultural equipment industry. When an OEM specifies a Sun-compatible cartridge valve, they are specifying that the valve will physically fit and seal in any Sun-rated manifold cavity of the same size designation. Because Sun-rated manifolds are the industry standard installed base — with over 40 million Sun-pattern cavities in active service globally — specifying Sun-compatible porting is a practical requirement for service parts availability.

The three porting sizes that matter for agricultural equipment are:

• SAE 8 (3/8″ valve) — used for pilot-operated check valves, sequence valves, and low-flow directional valves up to 60 L/min. Cavity depth is 36.5 mm; the anti-rotation flat is 4.76 mm wide.
• SAE 10 (1/2″ valve) — the most common agricultural size, used for load-sensing flow dividers, priority valves, and main spool directional valves up to 120 L/min. Cavity depth is 44.4 mm; anti-rotation flat is 6.35 mm wide.
• SAE 12 (3/4″ valve) — used for high-flow applications above 120 L/min including combine header lift and grain tank auger drives. Cavity depth is 50.8 mm; anti-rotation flat is 7.94 mm wide.

Non-Sun-compatible valves — those manufactured with incorrect cavity depth, incorrect anti-rotation flat dimensions, or incorrect seal groove positions — cause leakage at the cavity interface. The leakage is internal bypass flow: fluid pressure enters the valve, leaks past the incorrect seal geometry, and returns to tank without doing productive work. This internal bypass flow represents 8-15% of system efficiency loss, which manifests as elevated oil temperatures (oil heats because the pump is working against the bypass flow rather than against load), increased fuel consumption, and accelerated fluid degradation from oil shear heating.

The most reliable way to verify Sun-compatible porting is to request the manufacturer’s cavity dimension drawing and compare it against the Sun Hydraulics cavity specification (available in Sun’s catalog). The critical dimensions to verify are cavity diameter, cavity depth, anti-rotation flat width and position, and seal groove radial position. A deviation of more than 0.05 mm in any of these dimensions is sufficient to cause leakage at the cavity interface in high-pressure agricultural applications.

Pressure Ratings: Why the 15% Margin Above Relief Valve Setting Matters

Hydraulic cartridge valve pressure ratings are not a single number — they are a combination of the valve’s rated pressure (the maximum continuous operating pressure), its rated surge pressure (the peak pressure it can withstand without damage, for brief transients), and its fatigue pressure rating (the pressure at which the valve housing can withstand cyclic pressure loading indefinitely without developing fatigue cracks).

For agricultural equipment, the fatigue pressure rating is the most critical specification because agricultural hydraulic systems generate high-frequency pressure transients every time the hitch moves or the engine throttle changes. A tractor’s 3-point hitch alone generates 8-12 pressure cycles per minute during headland turns. Over a 1,000-hour season, that’s approximately 4.3 million pressure cycles on the cartridge valves in the hitch circuit. If the valve is specified at its rated pressure rather than with adequate margin above the system relief valve setting, each of those 4.3 million cycles is applying cyclic stress at a high percentage of the valve’s fatigue rating — which will cause the valve housing to develop fatigue cracks within 400-800 hours of operation.

The specification rule we apply for all agricultural applications is: valve rated pressure must equal or exceed the system relief valve setting by a minimum of 15%. If the system relief valve is set at 210 bar (typical for a 180 HP tractor), the cartridge valves in that system must be rated at minimum 241.5 bar — so we specify valves with a rated pressure of 250 bar or higher. This 15% margin ensures the valve is always operating below its fatigue pressure threshold regardless of pressure transient spikes.

European agricultural equipment manufacturers like John Deere, AGCO, and CNH Industrial typically specify 250 bar rated cartridge valves for standard tractor hydraulic circuits and 350 bar rated valves for combine and sprayer high-pressure circuits. These are industry-standard ratings that provide the necessary margins above typical relief valve settings.

Cross-Reference: Where the Specification Errors Cluster

Cross-referencing cartridge valves — finding a compatible replacement for an existing supplier’s part number — is where the most costly specification errors occur. The errors cluster around three categories, each with a different failure mode and cost implication.

Error Category 1: Pressure Rating Substitution. The most dangerous error is substituting a standard pressure rating valve (typically 250 bar rated) for a high-pressure version (350 bar rated) in an application that actually operates at higher pressures than the standard relief valve setting suggests. This happens on combine header hydraulic circuits where the relief valve is set at 240 bar for a standard circuit, but the combined demand of header lift and header tilt functions creates transient pressure peaks above 280 bar. The standard 250 bar valve handles the 240 bar steady-state but fails under the 280 bar transients. Because the failure is from fatigue cracking (not immediate), the valve might operate for 100-200 hours before cracking — long enough to pass the OEM’s factory test period but fail during the dealer’s pre-delivery preparation or during the customer’s first season.

Error Category 2: Flow Configuration Mismatch. Directional cartridge valves have three functional configurations: flow-through (both ports connected during the switching phase), tandem (center overlap that allows motor/cylinder to hold position whenspool is neutral), and float (all ports connected). A tandem valve specified where a flow-through was required will create a hydraulic cross-over that disables the implement hitch’s raise/lower hold function — the implement will slowly drift down when the spool is centered. This is a safety-critical failure mode on front loader applications where implement drift during transport is unacceptable.

Error Category 3: Seal Compound Mismatch. Agricultural hydraulic systems increasingly use bio-based hydraulic fluids (HEES — environmentally accepted hydraulic fluids) per EU Directive 2009/68/EC and the growing preference for biodegradable fluids in environmentally sensitive applications. Standard nitrile (NBR) seals are incompatible with many bio-based fluids — they swell, lose tensile strength, and fail prematurely. We see bio-oil-compatible seal failures at 500-800 hours where the normal service life with nitrile seals in mineral oil is 3,000-5,000 hours. The correct specification for bio-fluid systems is fluorocarbon (FKM/FPM) seals or polyacrylate (ACM) seals, which resist bio-fluid degradation.

Field Contamination: The Root Cause That Procurement Specs Overlook

Field contamination causes 40-50% of agricultural hydraulic cartridge valve failures, but most procurement specifications don’t address contamination compatibility because it’s not visible on the drawing. The contamination sources that matter for agricultural equipment are: soil ingress through cylinder rod seals, bio-oil degradation from water contamination, and harvest dust penetration through reservoir breathers.

Soil Ingression. During field operations, hydraulic cylinder rods extend from their barrels and accumulate soil on the rod surface. When the cylinder retracts, this soil passes the rod seal and enters the hydraulic fluid. The particles below 10 micrometers are the most damaging — they are small enough to remain suspended in the oil but large enough to score valve spools and wear seal grooves. In our analysis of failed agricultural cartridge valves, particles in the 3-8 micrometer range were present in 78% of contamination-related failures. For agricultural applications, we recommend specifying cartridge valves with hardened spool surfaces (chrome nitride or titanium nitride coating, hardness above 65 HRC) that resist particle scratching.

Bio-Oil Degradation. Water contamination in hydraulic fluid — from condensation in outdoor-stored equipment or from leaks in coolant-to-oil heat exchangers — accelerates hydrolysis of the anti-wear additives in bio-based oils faster than in mineral oils. The resulting acids (particularly carboxylic acids from hydrolysis of vegetable oil esters) corrode the lapped sealing surfaces of check valves and pilot-operated valves. We recommend specifying cartridge valves with stainless steel seat materials (AISI 440C or equivalent) for all agricultural applications where bio-based fluids are specified or where water contamination is a known risk.

Harvest Dust. During combine harvest, fine crop dust (primarily starch and cellulose particles in the 1-5 micrometer range) penetrates the hydraulic reservoir breather and accumulates in the fluid. In pilot-operated cartridge valves, these particles clog the pilot passages that control the valve’s switching behavior, causing the valve to become sluggish in response or to fail to return to neutral position when the pilot pressure is removed. The diagnostic indicator of harvest dust contamination is a valve that operates normally when the equipment is first started in the morning but progressively loses responsiveness through the day as the pilot passages clog with accumulated dust.

Real Project: Combine Header Hydraulic Fault Diagnosis

In the autumn of 2024, we were contacted by a German agricultural equipment dealer whose customer’s combine header kept losing height control during harvest. The header would lift and lower normally for the first 2-3 hours of operation, then progressively lose responsiveness until it stopped responding to the height control spool entirely. The dealer had replaced the cartridge valve in the header lift circuit twice, both times with the same part number from the original supplier, and both times the failure recurred within 200 hours.

When we received the failed valve, the post-mortem analysis showed three simultaneous failure mechanisms: the pilot-operated check valve seat was worn (caused by particle contamination from harvest dust), the pilot passage was partially blocked by a combination of harvest dust and degraded bio-oil polymer residue, and the spool surface had micro-pitting from particle abrasion below 10 micrometers. None of these were manufacturing defects — they were contamination-related wear accelerated by the use of a standard nitrile seal valve in a bio-based fluid system (the customer had switched to an environmentally accepted hydraulic fluid per EU regulations).

Our solution was a three-part specification upgrade: replace the standard nitrile seal valve with a fluorocarbon seal valve (FKM) compatible with the bio-based fluid; upgrade the spool surface coating from standard titanium nitride to titanium aluminum nitride (TiAlN) for superior particle abrasion resistance; and specify a 350 bar rated valve instead of the 250 bar rated version to provide additional fatigue margin given the combine’s high cyclic loading. The upgraded valve has now operated for over 600 hours without recurrence of the fault. The total cost increase from the specification upgrade was approximately 35% per valve — against a dealer cost of two replacement valves and multiple field service calls that exceeded the upgrade cost by 4x in the first season alone.

Incoming Inspection Protocol: What to Verify Before Installation

The standard incoming inspection for cartridge valves should verify four dimensions before installation. These four dimensions detect the most common cross-reference errors at the point of receipt, before the valve enters the hydraulic system.

• Cavity diameter and depth — use a bore gauge or calibrated plug gauge to verify the valve’s external dimensions match the cavity specification. A 0.05 mm deviation in cavity depth is sufficient to cause seal misalignment.
• Anti-rotation flat width — measure the anti-rotation flat with a calibrated micrometer. The flat must fit the Sun manifold slot without binding or excessive clearance. Maximum recommended clearance is 0.08 mm.
• Seal groove position — verify the seal groove radial position relative to the valve body datum face. A seal groove positioned 0.1 mm too far from the body face will create a pressure seal that leaks at the interface rather than containing pressure within the valve.
• Pilot passage cross-drilling — for pilot-operated valves, verify the pilot passage cross-drilling is clear by flowing solvent through the pilot port. Any restriction or blockage indicates the valve was damaged in transport or was improperly manufactured.

We’ve seen procurement teams accept cartridge valves based solely on dimensional drawings and supplier certificates, only to discover dimensional mismatches during installation. We recommend a simple physical fit check as part of incoming inspection — install the valve in a Sun-rated manifold test fixture (or a known-good manifold cavity) and pressurize to the system relief valve setting for 5 minutes while monitoring for external leakage. This 5-minute test detects seal interface issues that dimensional inspection alone might miss.
