3-way pressure reducing valve 15Bar(110981570 1124 AM 11F-15)
Advantage:
● Integrated Overpressure Protection: Unlike a 2-way valve, a 3-way valve acts as a pressure relief valve for the secondary circuit. If external forces (like a cylinder being pushed back) cause the secondary pressure to rise above 15 bar, the valve opens a path to the tank (the 3rd port) to bleed off the excess.
● Stable Output: It maintains the 15 bar setting regardless of fluctuations in the primary (inlet) pressure or changes in flow demand.
● Compact Integration: HAWE designs these as "screw-in" cartridges or manifold-mounted blocks, making them easy to integrate into existing valve banks without bulky piping.
● Durability: Built from all-steel components with hardened and ground internal parts, ensuring a long service life even in high-cycle industrial environments.
● Manual or Fixed Adjustability: Depending on the model (e.g., ADM 1 K-15), you can choose between a factory-set 15 bar fixed version or an adjustable version that you can fine-tune on-site.
Application:
These valves are primarily used in systems where a specific part of the machine requires a lower operating pressure than the main pump supply.
Pilot Control Supply: Providing a stable 15 bar supply to hydraulic pilot valves, joysticks, or solenoid control circuits.
Clamping Units: Maintaining a precise, low-pressure grip in machining fixtures to prevent deforming delicate workpieces.
Brake Systems: Delivering a consistent pressure for hydraulic brake release or engagement.
Lubrication Systems: Supplying low-pressure oil to bearings and gears from a high-pressure main line.
Test Benches: Creating stable, low-pressure conditions for testing hydraulic components.

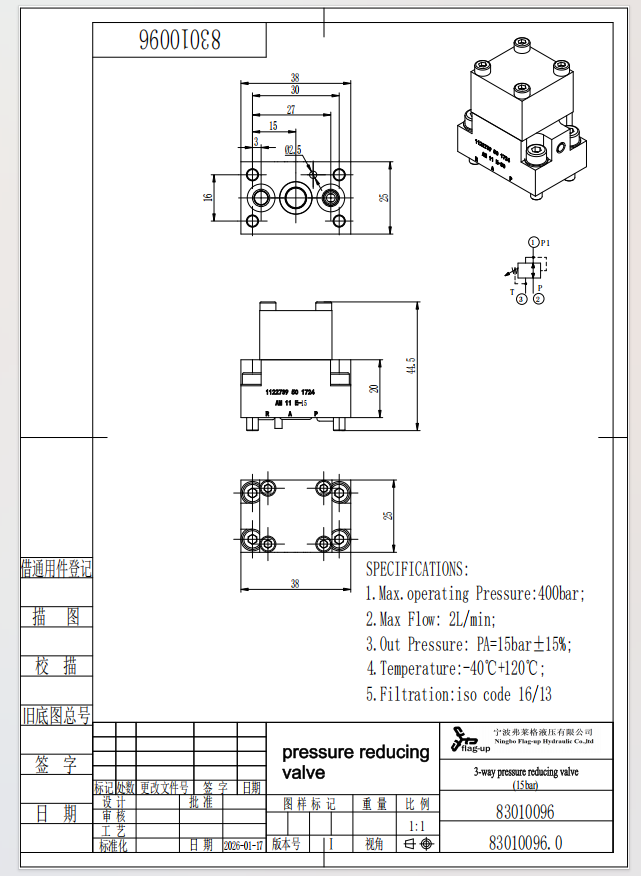

DRAWING:
