Why is the single hydraulic control foot pedal widely used in construction machinery?

In the hydraulic control systems of construction machinery such as loaders, cranes, and excavators, the single hydraulic control foot pedal is very common. What “skills” does it rely on to become a “permanent guest” in the hydraulic system of such equipment? Behind this is the result of its characteristics being deeply adapted to the operation scenes of construction machinery.

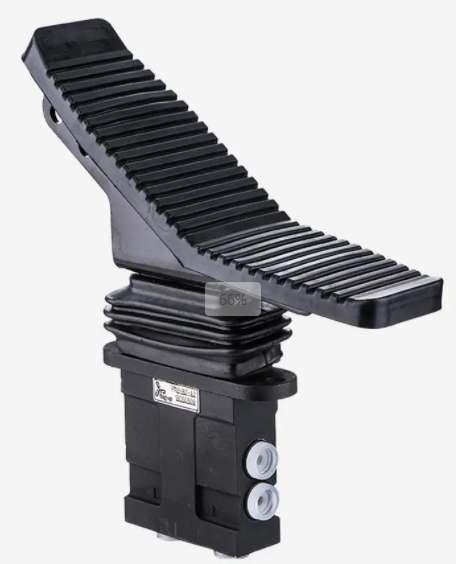

The essence of the single hydraulic control foot pedal is a mechanical foot valve, and the core working logic is not complicated: by stepping on or releasing the foot pedal, the opening and closing of the internal valve is controlled, thereby realizing the cut-off of the flow of the hydraulic system and the change of the flow direction. The seemingly simple operation method can play a unique value in the operation environment of construction machinery.

1. Operation coordination: free your hands and focus on core tasks

Construction machinery operations often require multi-action coordination. Taking an excavator as an example, the operator must control the digging and unloading of the bucket, and adjust the posture of the boom and dipper arm. Both hands bear the heavy responsibility of fine operation. The emergence of the single hydraulic control foot pedal makes the “foot” a new fulcrum for controlling the hydraulic system – by stepping on the pedal, the flow or direction of the hydraulic circuit can be adjusted without stopping the hand action. For example, when the excavator is leveling the site, the foot-controlled foot pedal adjusts the boom hydraulic pressure, and both hands focus on the subtle leveling of the bucket. The operation process is more coherent and the operation efficiency is naturally improved.

During the loader unloading operation, the driver needs to control the bucket tilt angle and vehicle driving at the same time. The single hydraulic foot pedal allows the foot to take on the task of controlling the bucket hydraulic pressure, and both hands can flexibly operate the steering wheel and control the speed of the vehicle, making the unloading position more accurate, avoiding material spillage, and improving the construction standardization. This “hand-foot division of labor” mode meets the multi-action coordination operation requirements of engineering machinery, greatly optimizes the operating experience, and reduces operator fatigue.

2. Performance adaptation: flexible and accurate, coping with complex working conditions

(I) Bidirectional operation and fine adjustment

The working conditions faced by engineering machinery are complex and diverse, and the flexibility and accuracy of hydraulic control are extremely high. Most single hydraulic foot valves support two-way operation. In addition to the basic functions of opening the valve by stepping on it and closing it by releasing it, some designs can also adjust the pedal stroke and pedal strength.

Taking crane lifting operations as an example, lifting goods of different weights requires different hydraulic flow rates. By adjusting the pedal stroke, the valve opening can be controlled to achieve subtle changes in the hydraulic oil flow rate, making the boom lift and fall more stable and avoiding heavy objects from shaking. During the excavator crushing operation, the pedal strength is adjusted according to the hardness of the rock to control the frequency and strength of the hammer to adapt to different construction intensities and improve the operation effect. This flexible adjustment capability allows the single hydraulic control foot pedal to “adapt to local conditions” and adapt to various working conditions.

(II) Reliable and durable, stable escort

The operating environment of construction machinery is harsh, and the hydraulic system is subjected to high pressure and vibration for a long time, which places strict requirements on the reliability of components. The single hydraulic control foot pedal is made of wear-resistant and high-pressure resistant materials. The valve body and sealing structure are optimized and can work stably in a high-pressure hydraulic environment, effectively avoiding leakage problems.

Loaders operating in mines face dust, bumps, and high-pressure hydraulic shocks. The wear-resistant material of the pedal can resist long-term trampling wear, and the high-pressure resistance ensures that the valve can still seal stably when the system pressure fluctuates. Even with long-term high-frequency use, its performance decays slowly, reducing equipment downtime caused by component failure, ensuring construction continuity, and “covering” the progress of the project.

3. Scenario rigid demand: filling the operational gap of hydraulic control

The hydraulic system of construction machinery requires a convenient, efficient and complex operation control method. Manual valves require manual operation resources and are easily “too busy” in multi-action coordination scenarios; although the electric control valve is accurate, it is limited by cost, wiring and environmental adaptability (such as humid and dusty environments are prone to failure).

The single hydraulic control pedal avoids some shortcomings of manual valves and electric control valves with the mode of “mechanical structure + foot operation”: no complex wiring is required, no fear of interference from harsh environments, and simple and reliable mechanical principles are used to achieve the “diversion” operation of hydraulic control. It fills the need for “operation fulcrums other than hands” in hydraulic control of construction machinery, making the operation process more reasonable and efficient, and naturally becomes the “standard” choice for hydraulic systems of loaders, cranes, excavators and other equipment.

From improving the efficiency of operation coordination, to the precision and durability of performance adaptation, to filling the gap of scene rigid demand, the single hydraulic control foot pedal deeply meets the operation needs of construction machinery with its own characteristics. Although it is small, it plays a key role in the “control link” of the hydraulic system, helping construction machinery to operate stably and efficiently under complex working conditions, becoming a “behind-the-scenes hero” to promote the smooth development of engineering construction, and also interpreting the underlying logic of industrial components being widely used due to “precise adaptation to scenes”.
